Es gibt 3 Versionen, in verschiedenen Varianten, der Grundplatten für die DAM Quick Champion Modelle. Die Versionen 1 und 2 können untereinander getauscht werden.

Möchte man die Rolle auf Version 3 umrüsten, so muss man den kompletten Antriebsstrang verwenden, denn nur diese Deckel und Grundplatten passen zusammen, wegen dem versetzten Drücker.

Außerdem ist es möglich, die verschiedenen Getriebe Übersetzungen zu tauschen, wenn dieses erforderlich sein sollte. Wichtig ist dann natürlich, das immer Rad und Ritzel gemeinsam getauscht werden müssen, sonst kämen die Räder wegen der verschiedenen Durchmesser nicht einwandfrei miteinander!

Im Anschluss zeige ich Euch wie ihr die verschiedenen Versionen erkennt und welches Baujahr sie ca. haben.



There are three versions, in different variations, of the base plates for the DAM Quick Champion models. Versions 1 and 2 are interchangeable.

If you want to upgrade the reel to version 3, you must use the complete drive train, as only these covers and base plates are compatible due to the offset trigger mechanism.

It’s also possible to swap the different gear ratios if necessary. It’s crucial that the wheel and pinion gear are always replaced together; otherwise, the different diameters will prevent proper meshing.

Next, I’ll show you how to identify the different versions and their approximate production years.

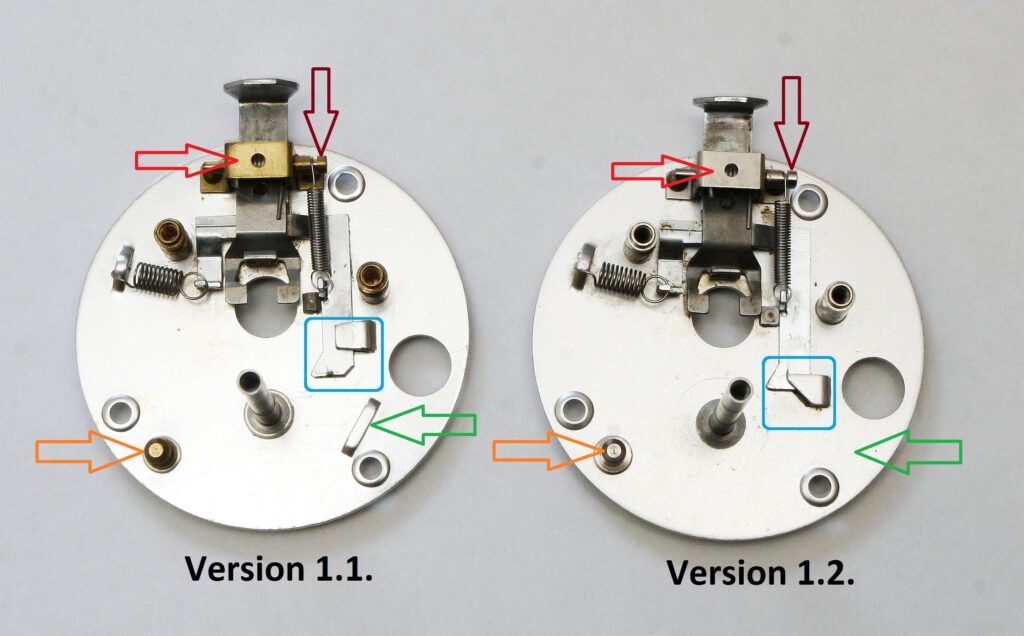

Version 1.1. Baujahr ca. ab 1975

Roter Pfeil: Führung vom Drücker Messing blank

Lila Pfeil: Welle vom Drücker Messing blank

Blaues Viereck: Lasche für Ausrückhebel oberhalb der Bohrung

Oranger Pfeil: Welle für Rücklaufsperre Messing blank

Grüner Pfeil: längliche Ausprägung



Version 1.1. Manufactured from approximately 1975 onwards

Red arrow: Guide for push button, bare brass

Purple arrow: Shaft for push button, bare brass

Blue square: Tab for release lever above the bore

Orange arrow: Shaft for backstop, bare brass

Green arrow: Elongated indentation



Version 1.2. Baujahr ca. ab 1976

Roter Pfeil: Führung vom Drücker Messing vernickelt

Lila Pfeil: Welle vom Drücker Messing vernickelt

Blaues Viereck: Lasche für Ausrückhebel, abgeschrägt mittig der Bohrung

Oranger Pfeil: Welle für Rücklaufsperre Messing vernickelt

Grüner Pfeil: keine längliche Ausprägung



Version 1.2. Manufactured from approximately 1976 onwards

Red arrow: Guide for the push button, nickel-plated brass

Purple arrow: Shaft for the push button, nickel-plated brass

Blue square: Tab for the release lever, beveled in the center of the bore

Orange arrow: Shaft for the backstop, nickel-plated brass

Green arrow: No elongated protrusion

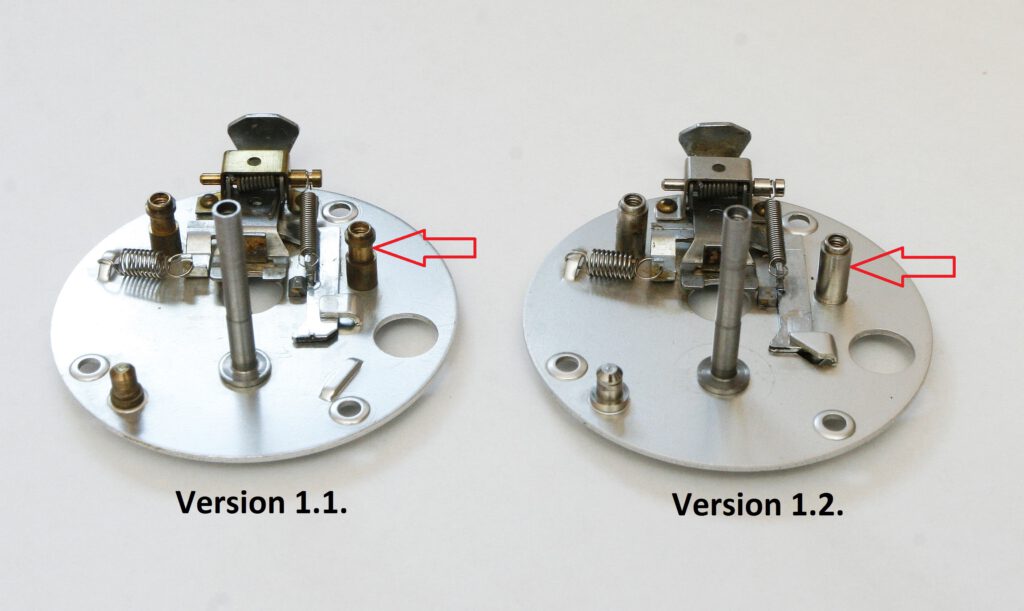

Version 1.1. Baujahr ca. ab 1975

Roter Pfeil: Abstandshalter für Deckel, Messing blank, mit Freimachung im oberen Drittel



Version 1.1. Manufactured from approximately 1975 onwards.

Red arrow: Spacer for lid, bare brass, with clearance in the upper third.



Version 1.2. Baujahr ca. ab 1976

Roter Pfeil: Abstandshalter für Deckel, Messing vernickelt, ohne Freimachung



Version 1.2. Manufactured from approximately 1976 onwards.

Red arrow: Spacer for lid, nickel-plated brass, without clearance.

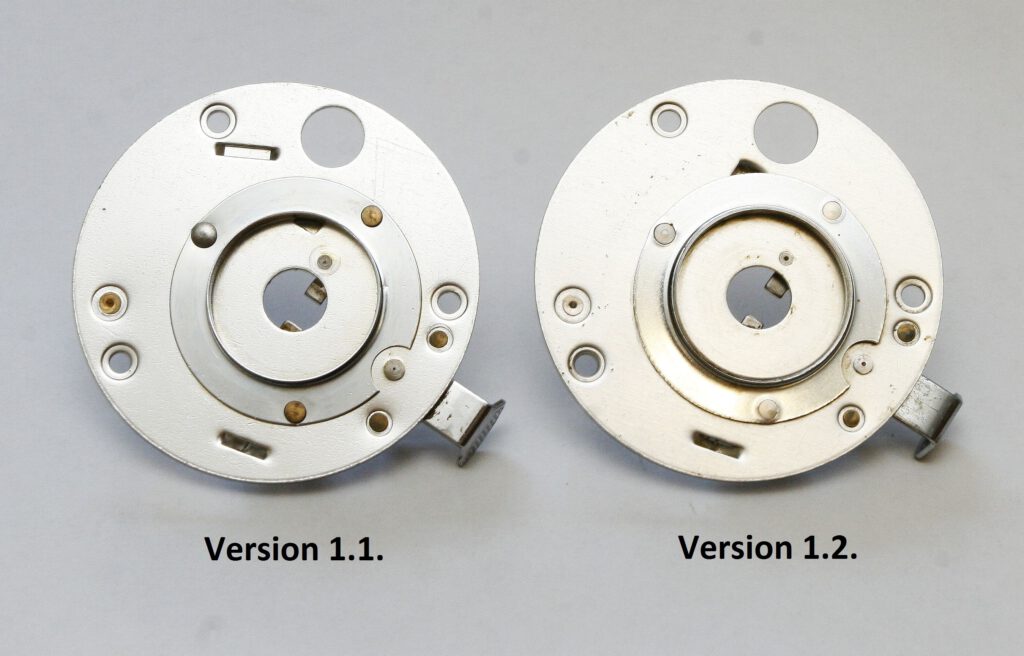

Version 1.1. Baujahr ca. ab 1975

Von der Rückseite sind die Grundplatten fast identisch, nur die Niete unterscheiden sich leicht in Form und Oberflächenbehandlung.



Version 1.1. Manufactured from approximately 1975 onwards.

From the back, the base plates are almost identical, only the rivets differ slightly in shape and surface finish.

Version 1.2. Baujahr ca. ab 1976

Von der Rückseite sind die Grundplatten fast identisch, nur die Niete unterscheiden sich leicht in Form und Oberflächenbehandlung.

Version 1.2. Manufactured from approximately 1976 onwards.

From the back, the base plates are almost identical; only the rivets differ slightly in shape and surface finish.
